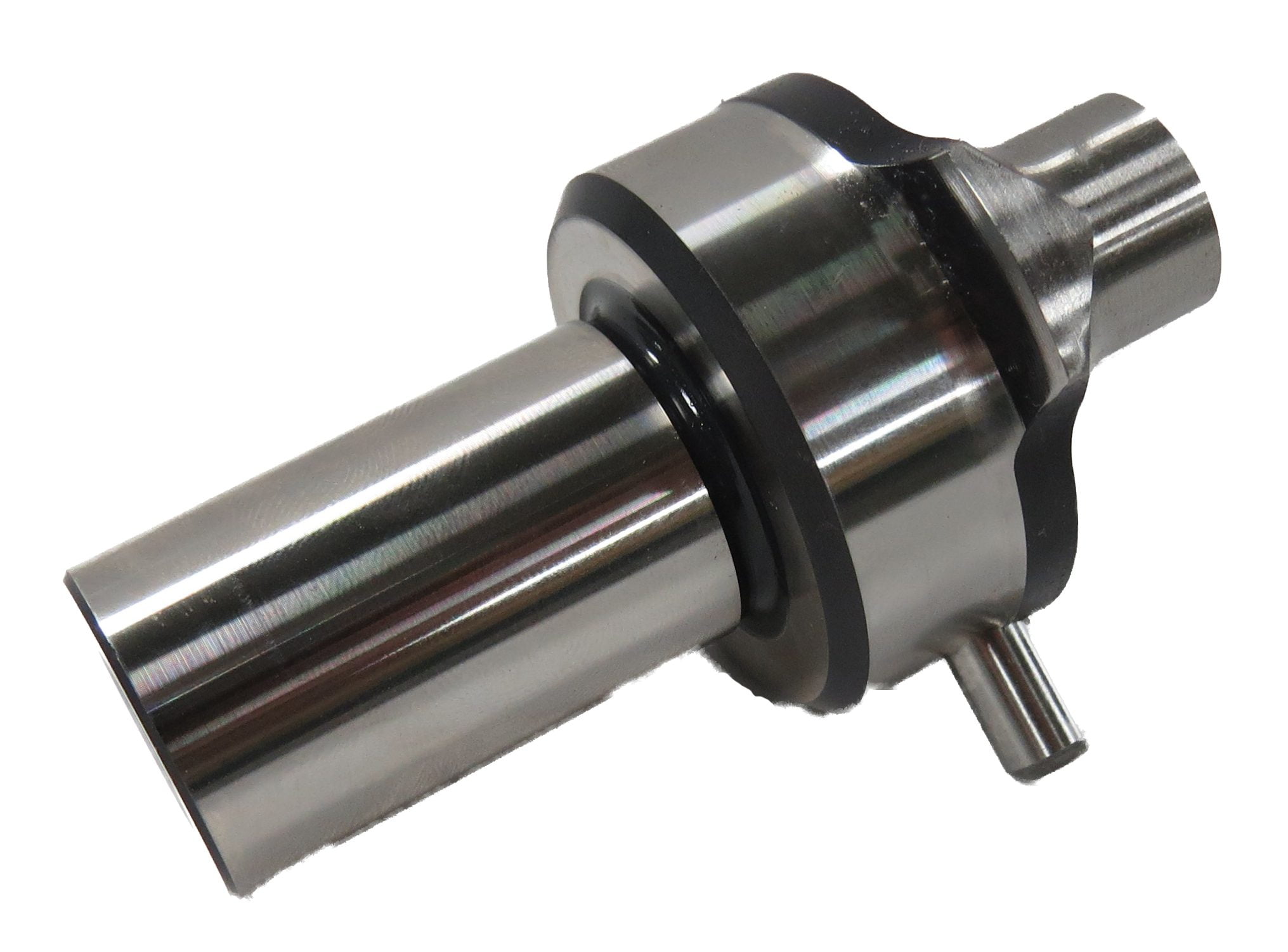

3615 Shaped Punch

Dimensions:
Body Diameter: 7/8", New Length: 2-21/32", Throw Away Length: 2-17/32"

Shape:
Select Shape Square Rectangle Obround

Punch Size:

Select the orientation of the shape:

Point X at front of unit

Point X at side of unit

*Note:
Input the Punch Dimensions in inches (Ex: .250 x .500). These are the dimensions of the shaped hole
