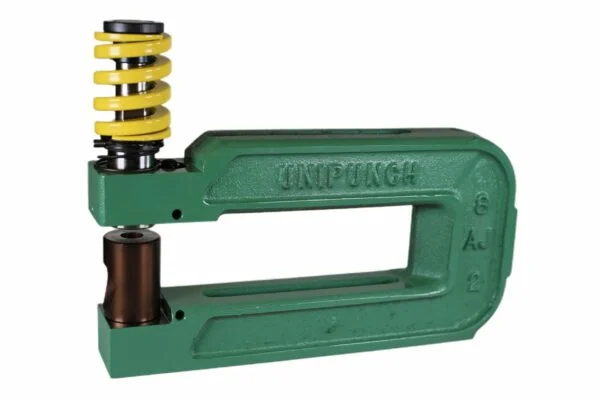

14306P 8SAJ-2P SHAPED UNIT COMPLETE

$839.53


Specifications & Operating Instructions:


Shape:

Punch Size:

X

Die Size:

X

Select the orientation of the shape:

Point X at front of unit shape orientation 1
Point X at side of unit shape orientation 2

*Note:
Input the Punch Dimensions in inches (Ex: .250 x .500). These are the dimensions of the shaped hole. Input the Die Dimensions in inches (Ex: .256 x .506). Die dimensiones = Punch Dimensions + Die Clearance. The minimum Die Clearance is .006".

Category:

8SAJ-2P SHAPED UNIT COMPLETE WITH PEDESTAL DIE

Weight 23 lbs
Dimensions 12 × 2 × 9.13 in
